Upright Drilling Machine

Product Code : EL-MMTM-11951

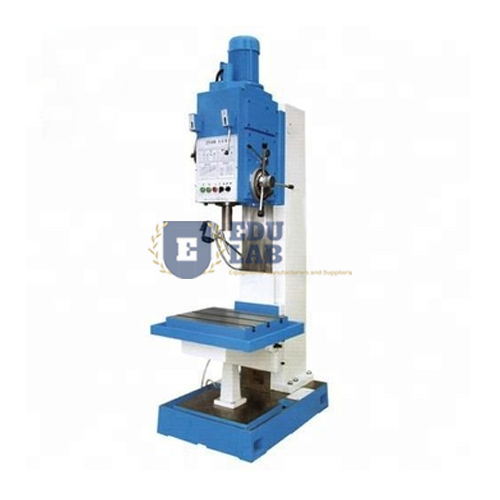

Upright Drilling Machine

Specifications

Maximum drilling diameter25mm (1 inch)
Maximum spindle travel140mm (5 1/2 inches)
Taper of spindle boremorse number 3
Spindle centre to vertical column surface315mm (12 3/8 inches)
Effective working area of base plate475 x 400mm (18 11/16 x 15 3/4 inches)
Spindle speeds (50Hz)100 to 2,900rpm
Spindle speeds (60Hz)120 or 3480rpm
Flow capacity12L/min
Max distance spindle nose to worktable660mm (26 inches)
Working table315 x 415mm (12 3/8 x 16 3/8 inches)
Motor power0.75 or 0.55kW
Overall dimensions788 x 560 x 1,820mm (31 x 2263 inches), 788 x 560 x 1,835m (31 x 22 x 72.25 inches)
Net weight440/504 x 430/540kg
Cooling pump3-phase cooling pump
Max distance spindle nose to base plate480mm (18 7/8 inches)
Effective working area of worktable1,200 mm (47 1/4 inches)
Power0.04kW
Supply380V, 50Hz

For larger work, see the Radial Drilling Machine; the Drilling Machine Vice holds parts on the table, and the Center Lathe Machine and the Universal Milling Machine round out the Metal Manufacturing Training Machine range within TVET Lab Equipments Manufacturers.
