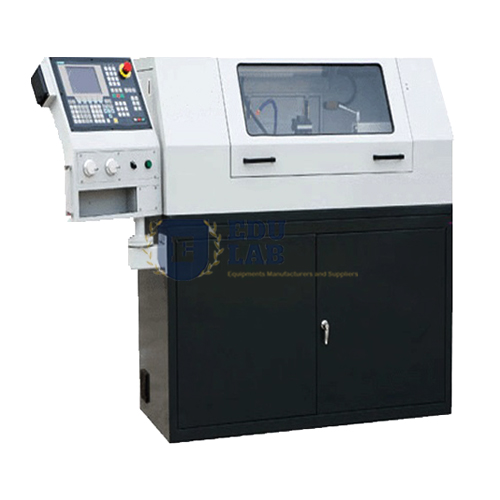

CNC Lathe System Manufacturer,Supplier and Exporter in India

CNC Lathe System

Product Code : EL-CTM-11752

CNC Lathe System
Specification:-
Distance between centers600mm
Pitch-metric0.2 – 3.5mm
Pitch-inch8-56TPI
X travel130mm
X repeatability positioning accuracy0.012
Z repeatability positioning accuracy0.013
Z travel465 mm
Spindle boreΦ26mm
Spindle speeds30-4000rpm
X rapid speed3000mm/min
Turning Φ via lathe bedΦ260mm
Z rapid speed2500mm/min
X positioning accuracy0.03
Z positioning accuracy0.032
Motor power2.2KW 230V~50Hz
Packing size2220 x 820 x 1720mm

Other lathes include the CNC Lathe Machine Floor Model, the CNC Semi Production Lathe and the Spinner 18; for controls, see the CNC Lathe Controller. All are in CNC Trainer Machine, part of TVET Lab Equipments Manufacturers.
