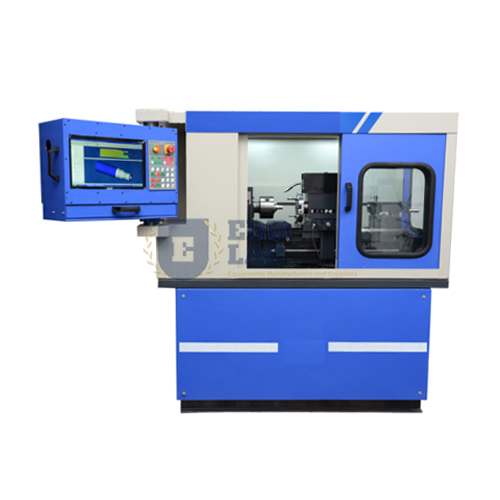

CNC Trainer Lathe Machine

Product Code : EL-CTM-11728

CNC Trainer Lathe Machine
Specification:-
Max. Turning Dia55 mm
Max. Turning Length100 mm
Swing Over Bed150 mm
Std. Turning Dia.50 mm

Turret

Max. Boring Bar Dia.32 mm
Tool Cross Section16 x 16
Turret TypeLinear
No. Of Stations2

Axes Slides

X-Axis Stroke150 mm
Z-Axis Stroke100 mm
Rapid Traverse X-Axis15 m/min
X-axis Guide WaysLM
Rapid Traverse Z-Axis15 m/min
Z-axis Guide WaysLM

Main Spindle

Bore Through Spindle35 mm
Bar Capacity12 mm
Chuck Size80 mm

Spindle Drive

Spindle Motor Power1.5 HP
Speed Range (RPM)4000

Accuracy

Position Accuracy0.015 mm
Repeatability±0.003 mm

Machine Dimensions

Dimension (L x B x H)1250 x 850 x 1650
Weight (Approx.)1000 kg

Other turning trainers include the CNC Lathe Trainer Stepper, the CNC Lathe Machine Floor Model and the CNC Semi Production Lathe; for milling, see the CNC Trainer Milling Machine. All are in CNC Trainer Machine, part of TVET Lab Equipments Manufacturers.
