CNC Lathe Machine Floor Model Manufacturer,Supplier and Exporter in India

CNC Lathe Machine Floor Model

Product Code : EL-CTM-11726

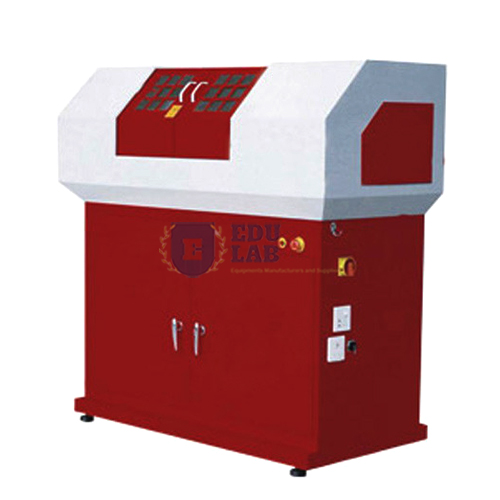

CNC Lathe Machine Floor Model
Specification:-
Swing over bed250mm (10”)
Z axes max. travel320mm (13")
X axes max. travel180mm (7")
Packing size (L x W x H)1630 x 1070 x 1685mm
G.W/ N.W.530/ 440kg
Swing over carriage110mm (4.3”)
Max. Moving Speed of X/Z Axes2m/min
X/Z axes motor4Nm
Tool turret4 station
Tool turret angle360 degree
Tailstock travel50mm(2”)
Turret return orientation precision0.005mm
X/Z axes feeding speed500mm/min
Main motor power1kw
Positioning precision0.015mm
Repeat positioning precision0.01mm
Center distance450mm (18”)
Bed width135mm (5.3”)
Spindle speed100-3000 rpm
Machine size (L x W x H)1460 x 760 x 1450mm

A bench version is the CNC Lathe Machine Table; for milling, see the CNC Milling Machine Floor Model and the CNC Trainer Milling Machine, and for controls, the CNC Lathe Controller. All are in CNC Trainer Machine under TVET Lab Equipments Manufacturers.
