CNC Lathe Machine Table Manufacturer,Supplier and Exporter in India

CNC Lathe Machine Table

Product Code : EL-CTM-11727

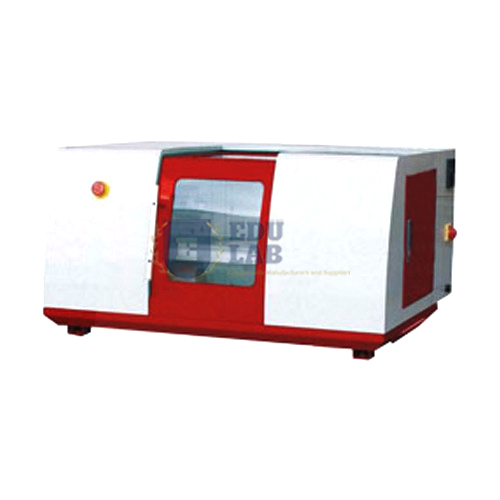

CNC Lathe Machine Table
Description:-
The offered CNC Lathe Machine table is known to be one of the best that is available in the market.
With a highly commendable functionality, longer functional life, high resistance to corrosion and market leading rate.
It is highly demanded in the market.
Specification:-
Spindle speed100-3000 rpm
Max. Moving Speed of X/Z Axes2m/min
X/Z axes feeding speed500mm/min
Z axes max. travel250mm(13”)
Machine size (L x W x H)1000 X 780 X 565 mm
G.W/ N.W.180/140 kg
X-axes max. travel150mm(7”)
Tool turret4 Station
Swing over bed200mm (7.9”)
Swing over carriage100mm (4”)
Tool turret angle360 degree
Tailstock travel50mm (2”)
Positioning precision0.015mm
Center distance460mm (14”)
Bed width100mm (4”)
Repeat positioning precision0.01mm
X/Z axes motor1.35Nm
Turret return orientation precision0.005mm
Main motor power500w

Other lathes include the CNC Lathe Machine Floor Model, the CNC Trainer Lathe Machine and the CNC Lathe System; the matching mill is the CNC Milling Machine Table Model. All belong to CNC Trainer Machine within TVET Lab Equipments Manufacturers.
