CNC Milling Machine with Cabinet and PC Manufacturer,Supplier and Exporter in India

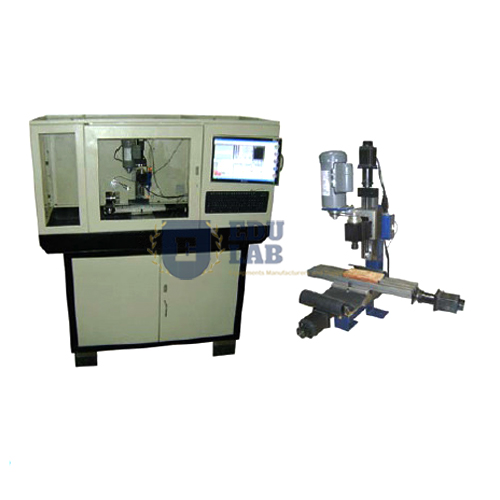

CNC Milling Machine with Cabinet and PC

Product Code : EL-CTM-11753

CNC Milling Machine with Cabinet and PC
Description:-
Owing to the perfect quality and supreme performance, the offered product is highly appreciated in the market.
Feature:-
Stepping Resolution0.003mm
Mechanical repeatability0.01mm
Rapid Travel30 in/min
Spindle Speed1100 - 11000 RPM
TravelX = 300mm, Y = 146mm, Z = 153mm
Ground steel sliding ways with adjustable brass gib.
Hard anodized aluminum table.
Adjustable tapered brass gib on X-axis.
Universal Standard G-Code import.
1/2" (12.7mm) 20 pitch Cr-Mo leadscrews with adjustable split bronze nuts on all axes.
It has coolant system with the removable collector, mechanical storage system on the bottom of a Computer system, Controller and for Electrical wiring.
The system supplied with PC with Intel Pentium-IV CPU @ 2.4 GHz, 512MB RAM, 52X DVD Writer, Optical Mouse, 15” TFT Monitor & Keyboard.

The CNC Micro Mill offers the same travel as a desktop system; other compact mills include the 8 Directional Vertical Milling and the CNC Milling Machine Table Model. See CNC Trainer Machine, part of TVET Lab Equipments Manufacturers.
