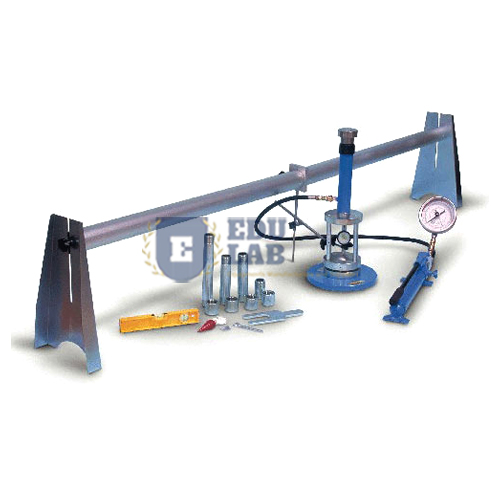

Plate Bearing Test

Product Code : EL-SM-11906

Plate Bearing Test
Use:-
For estimating the bearing capacity of shallow foundations and for the design of flexible pavement; also used for load tests of soil and flexible pavement components.

Specifications

Hydraulic jack with fixed pumping unit0-500 kN. x 0.5 kN
Top end plates (4)50mm, dia with a male thread for fitting onto the extension rods and positioning the dial gauge plunger
Columns (2)15cm dia x 25cm long with flanges complete with four bolts and nuts
Column (1)15cm x 50cm long with flanges complete with four bolts and nuts
Pressure gauge and flexible metal pipe5m long - 1No
Ball and socket arrangement (1)between the jack and the bearing plate
Extension rods (16)12mm. dia x 25cm long
Magnetic bases (4)with a female thread on top for holding extension rod
Bridge support (1)welded steel angle construction, 5m, span and stands approximately 30cm, high, fitted with two quick release clamps, dial bracket
Plane M.S. plate (60 cm)60 cms x 60cms sq. x 25mm thick
Plane M.S. plate (45 cm)45cms x 45cm.sq. x 25mm thick
Plane M.S. plate (30 cm)30cms x 30cm.sq. x 25mm thick
Dial gauges (4)0.01mm x 25mm

Accessories

Plane M.S. plate (75 cm)75cm x 25mm thick
Plane M.S. plate (50 cm)50cm x 25mm thick
Grooved M.S. plate (60 cm)60cm x 60cm x 25mm thick
Grooved M.S. plate (75 cm)75cm x 75cm x 25mm thick
Grooved M.S. plate (45 cm)45cm x 45cm x 25mm thick
Grooved M.S. plate (30 cm)30cm x 30cm x 25mm thick
Flexible rubber pipe1m. Length for the hydraulic jack in the place of metal pipe

For bearing capacity work the Plate Bearing Test pairs with the Field CBR Equipment and the Motorised CBR Machine, while the Sand Replacement Equipment and the Cone Apparatus cover density testing. It is listed in Soil Mechanics, within our TVET Lab Equipments Manufacturers range; project buyers can also see our Tenders page.
