Permeability Test System

Product Code : EL-SM-11921

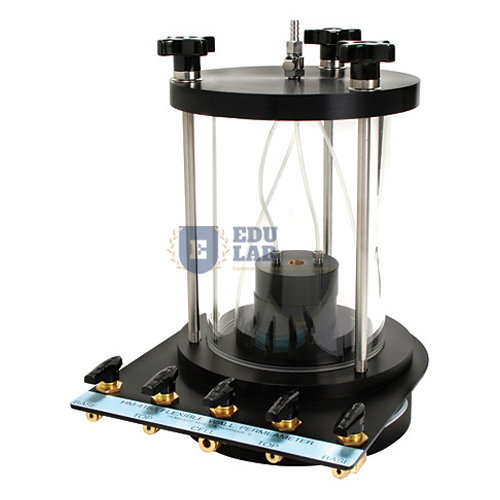

Permeability Test System
Use:-
Permeability Test System for efficient and accurate permeability testing of a wide range of construction materials.
Permeability Cell:-
Cell diameterØ 75 mm
The (b) type permeability cell is specially designed for constant head tests on incoherent soil samples.
Inlet and drainage ducts are found in the metal base.
A movable stem enables stabilization of the upper surface of the sample.
It has a central body with 3 outlets for 3 manometer tubes through which water is collected after seepage through the sample.
Weight 3 Kg Standpipe with three manometers tubes:-
Comprises 3 glass tubes all of the same diameter, relevant graduated rods, taps and metal pedestal for bench mounting.
Standpipe dimensions320 x 1450 x 500 mm
Standpipe weight15 g
Constant level tank: Supplied with support for wall mounting.
It comprises a transparent body, water supply ducts, discharge and flow valves.

The Soil Permeability Apparatus offers a mould-based alternative, while the Consolidation Apparatus and the Particle Size Analysis Test Set cover related consolidation and particle size tests. Explore these in Soil Mechanics, part of TVET Lab Equipments Manufacturers.
