Cariollis Component of Acceleration

Product Code : EL-TOMLE-11872

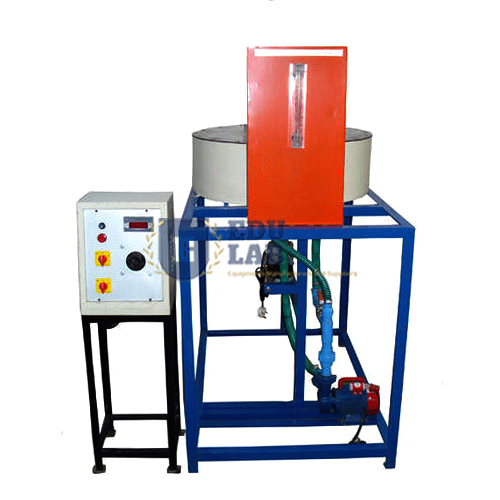

Cariollis Component of Acceleration
Description:-

This set-up is designed to study the Coriolis component of acceleration of a slider-crank mechanism.

The apparatus uses a hydraulic analogy to represent the rotating slider.

It consists of a rotating block with two arms in opposite directions.

A Perspex window on the top cover helps to visualize the process, while a rotameter is used to measure the water flow rate through the tubes.

The tubes can be rotated at various speeds using a swinging-field motor, which also acts as a dynamometer to measure the torque applied to the rotating tubes.

Water is circulated by a small monoblock pump.

Specifications:-
SpecificationValue
Main TankFiberglass lining
Rotating Arms9/6 mm dia, 300 mm long
MotorSwinging field, D.C., 0.5 HP
Flow MeasurementRotameter
Water CirculationMonoblock pump
Control PanelSpeed control unit, speed indicator, necessary switches
FrameRigid support frame
Range of Experiment:-

The Coriolis component of acceleration can be determined at various speeds of rotation and water flow rates.

Services Required:-
ServiceRequirement
Electric SupplyA.C. single phase, 230V, stabilized supply
Floor Space Required1.5 m x 1.5 m
