Static and Dynamic Balancing Apparatus Manufacturer,Supplier and Exporter in India

Product Code : EL-TOMLE-11867

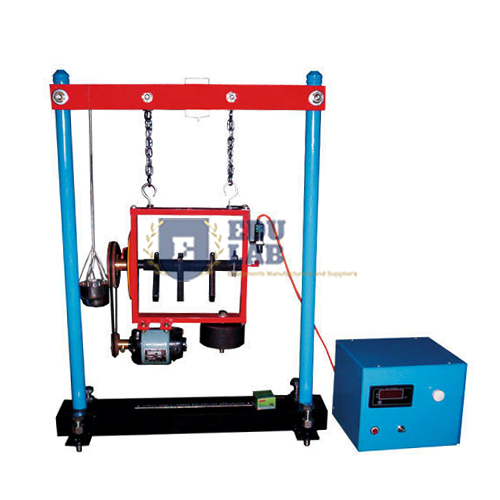

Static and Dynamic Balancing Apparatus

Description:-

This equipment is designed for carrying out the experiment for balancing a rotation mass system.

The apparatus consists of a stainless steel shaft fixed in a rectangular frame.

For static balancing, each block is individually clamped on shaft and its relative weight is found out using cord and container system in terms of number of steel balls.

A set of four blocks with a clamping arrangement is provided.

For dynamic balancing, a moment polygon is drawn using relative weights and angular and axial position of blocks is determined.

The block are clamped on shaft is rotated by a motor to check dynamic balance of the system.

The system is provided with angular and longitudinal scales and is suspended with chains for dynamic balancing.

Experiments:-

To balance the masses statically and dynamically of a single rotating mass system.
To observation of effect of unbalance in a rotating mass system.

Technical Specification:-

Specification	Value
Power Supply	0.5 kW, 220 V, Single Phase
Drive Motor	FHP Motor, variable speed, with speed controller
Balancing Weights	4 Nos. of Stainless Steel with different sized eccentric mass for varying unbalance
Rotating Shaft Material	Stainless Steel
Structure	Well designed and arranged in a good quality painted structure
