Epicyclic Gear Train Holding Torque Apparatus

Product Code : EL-TOMLE-11874

Epicyclic Gear Train Holding Torque Apparatus
Description:-

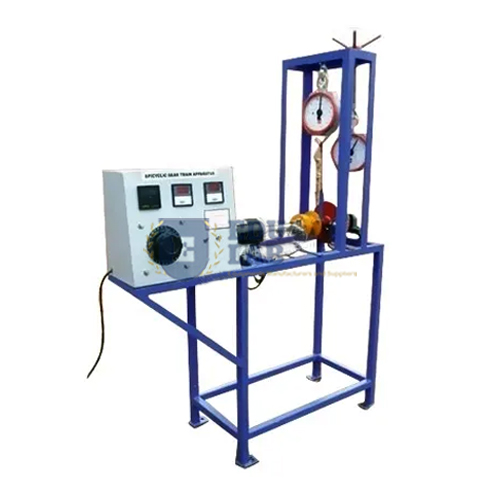

This is a motorized unit consisting of a sun gear mounted on the input shaft.

Two planet gears mesh with the annular gear, and these planet gears are mounted on a common arm to which the output shaft is fitted.

A loading arrangement is provided for loading the system and measuring the holding torque.

Specifications – External Type Epicyclic Gear Train:-
SpecificationValue
TypeExternal type epicyclic gear train
Shaft SupportBearing blocks for input and output shafts
LoadingGear train with holding drum and handle
Specifications – Internal Type Epicyclic Gear Train:-
SpecificationValue
TypeInternal type epicyclic gear train (compact)
MotorVariable speed D.C. motor
Control PanelDigital ammeter and voltmeter, RPM indicator, speed controller
Loading/MeasurementRope brake arrangement to measure output torque and holding torque
Experimentation:-

To measure the epicyclic gear ratio between the input shaft and the output shaft.

To measure the epicyclic gear ratio between the input shaft and the holding drum.

To measure input torque, holding torque and output torque.

Services Required:-
ServiceRequirement
Floor Space RequiredAbout 1.5 m x 2 m
Electric Supply230V A.C. stabilized power supply

For related gear-tooth studies, see the Generation of Involute Gear Tooth Profile board and the Interference and Undercutting apparatus. Browse more Theory of Machine Lab Equipments, or view the full range of TVET Lab Equipments Manufacturers products.
