Motorised Gyroscope Apparatus Manufacturer,Supplier and Exporter in India

Motorised Gyroscope Apparatus

Product Code : EL-TOMLE-11868

Motorised Gyroscope Apparatus
Description:-

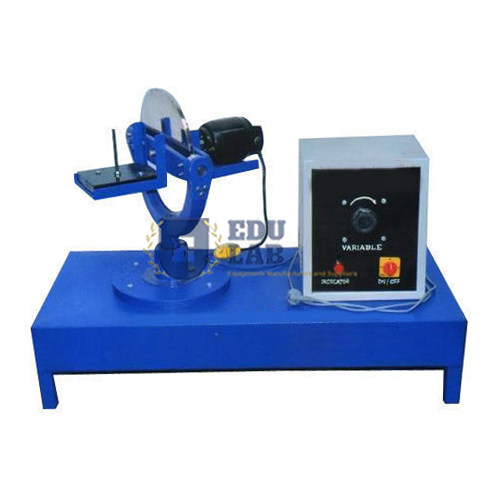

The apparatus consists of a rotor mounted in bearings, free to rotate about the axis of gyroscopic couple, its own axis (axis of spin), and the axis of precession.

The rotor is connected to a variable speed motor, and the weight of the motor is balanced by another weight on the opposite side of the rotor.

By putting weights on the weight platform, torque can be supplied to the rotor, which is called the gyroscopic couple.

Specification:-
SpecificationValue
Rotor Diameter250mm, free about 3 axes of rotation, driven by variable speed motor
Speed ControlDimmerstat
Speed MeasurementStopwatch (angular speed about axis of precession); tachometer available at extra cost
Weights Provided0.2 kg, 0.5 kg and 1 kg
DocumentationTechnical manual included
Power Supply220V stabilized AC supply with earthing connection
Bench Area Required0.5 x 0.5m at working height

For related rotating-mass and precession experiments, see the Static and Dynamic Balancing Apparatus and Motorised Governor Apparatus, or the Precision Gyroscope and Rotational Motion Study Equipment. Browse more Theory of Machine Lab Equipments, or view the full range of TVET Lab Equipments Manufacturers products.
