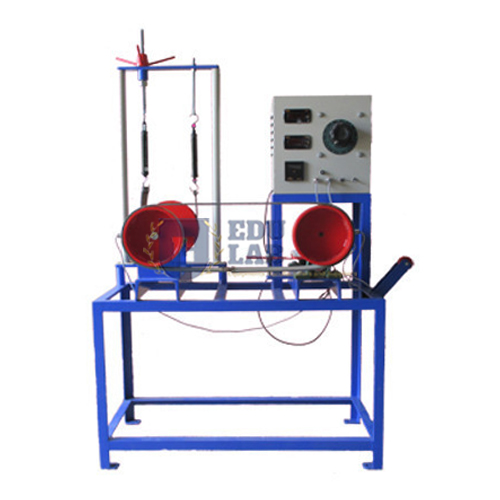

Slip and Creep Measurement Apparatus

Description:-

The apparatus consists of a variable-speed D.C. motor driving equal-diameter driving and driven pulleys.

A brake drum mounted on the output shaft helps measure power output.

The pulleys are mounted on the input shaft (motor shaft) and the output shaft.

The driven pulley can slide on the base with a bearing block to change the initial tension in the belt.

Motor speed is varied by a dimmerstat, and a two-channel RPM indicator measures the speeds of the driven and driving pulleys.

Specifications:-

Specification	Value
Motor	D.C., 1 HP, 1500 RPM, variable speed
Pulleys	Driving and driven, of equal diameters
Brake Drum	With spring balance
Belt Materials	Flat belt of fixed length – fabric, canvas, and rubber options
Belt Tightening	Belt tightening arrangement provided
Speed Control	Speed controller unit (dimmerstat)
RPM Measurement	Two-channel digital RPM indicator
Additional Instrument	Stroboscope

Experimentation:-

To measure the coefficient of friction between the pulley material and different belt materials.

To measure power transmitted with varied belt tensions and plot a graph of (T1?T2) tension characteristics.

To measure percentage slip at fixed belt tension by varying the load on the brake drum and plot a graph of (T1?T2) vs. percentage slip, i.e. slip characteristics.

To find the creep zone from the graph.

To measure belt slip speed and observe the limiting value at constant speed when slip just starts.
