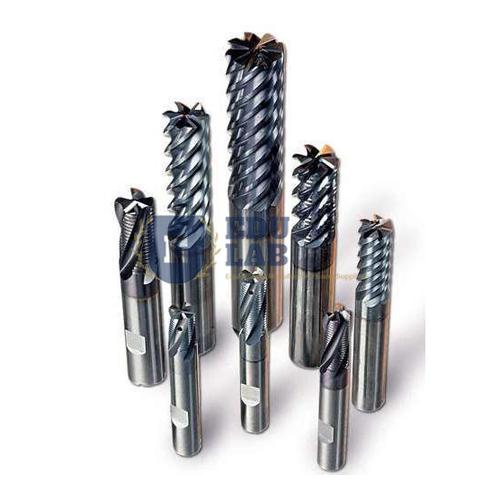

Milling Tool Manufacturer,Supplier and Exporter in India

Product Code : EL-TOMLE-11877

Milling Tool Dynamometer

Description:-

This is a simple, easy-to-understand set-up to study the behavior of cutting forces during a milling operation in three directions.

With this unit, students can evaluate cutting depth, speed and feed.

It consists of a mechanical ring sandwiched between two M.S. plates with strain gauges fixed on it.

The unit works on the standard method of an octagonal ring with strain gauges, which transmits the relevant data to the force indicator during the milling operation.

Features:-

Rigid construction and a compact unit.

Assessment of cutting forces giving due consideration to parameters such as depth of cut, material, speed and feed.

Easy to handle, with digital force indicators that measure three forces simultaneously.

Specifications:-

Specification	Value
Sensing Unit	Mechanical sensing unit with set of octagonal rings and strain gauges
Force Indicator	Three-channel digital force indicator with balancing potentiometers and polycarbonate front plate
Force Measurement Range	0 to 500 kg (coordinate direction)
Overall Size (Mechanical Unit)	300 x 300 mm

Services Required:-

Service	Requirement
Milling Machine	Necessary milling machine with automatic feed arrangement and tooling
Electric Supply	230V, single phase, 50 Hz, stabilized power supply

This is one of the Tool Dynamometers range, alongside the Lathe Tool, Grinder Tool, and Drilling Tool dynamometers. Browse more Theory of Machine Lab Equipments, or view the full range of TVET Lab Equipments Manufacturers products.
